All Unitrack points come fitted with the point motor built into the base of the point.
Unlike other track systems, the point motors work on a 2-wire 12-volt DC voltage and need a 24-840 point switch to work properly.
The point lead cable can be extended by using 24-841 90cm (35") extension lead.
All Unitrack points can be operated manually, by the sliding switch next to the point blades.
Unitrack #4 points are 124mm long & have track centres of either 33mm, 49.5mm or 66mm depending on how you set them up.
- Radii; 481mm (19")
- Angle; 15deg
- Point length; 124mm (4-7/8")
- Frog power ON/OFF (change screws on base to suit your needs)
- Power routing or Non-power routing (change screws on base to suit your needs)
- Cast metal frog
Contents:
- 1 pc 124mm Point/Turnout
- 1 pc Radii 481mm (19") 15deg curve
- 1 pc Each S60 (60mm) left & right cut straight
- 2 pcs 64mm straight
- 1 pc point power lead 90cm (35")
- 2 pcs Custom insulated unijoiners
(Extra track parts are included to help with maintaining good track spaceing/geometry in the most common layout designs)

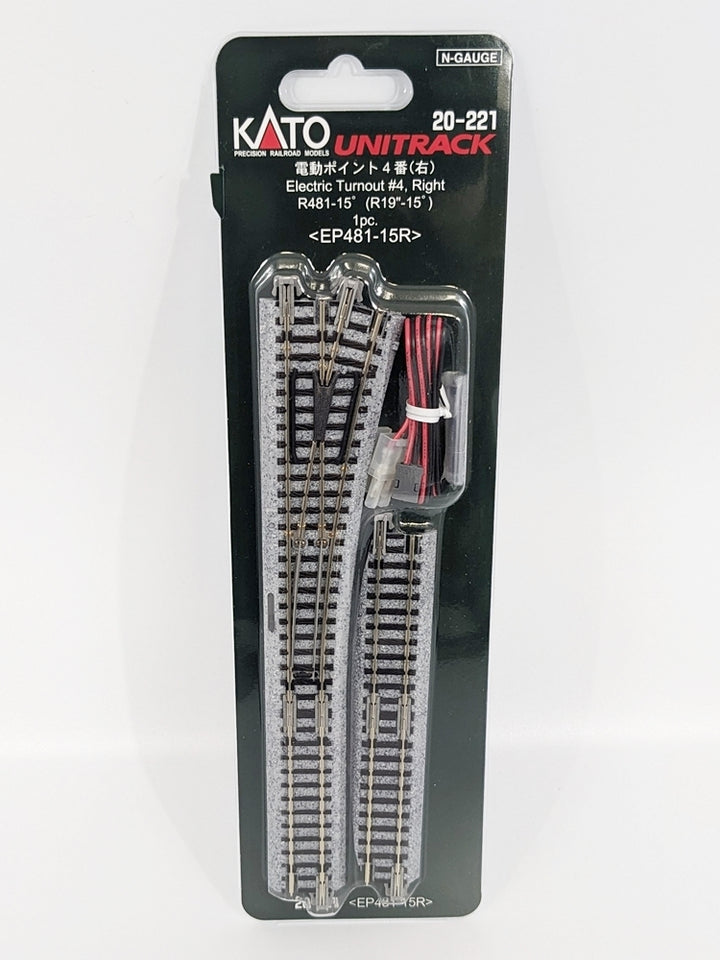

N Electric Turnout #4, Right R48115° (R1915°)
