Description
This is a power unit for Tomix N gauge and is the successor to PU-N-1.

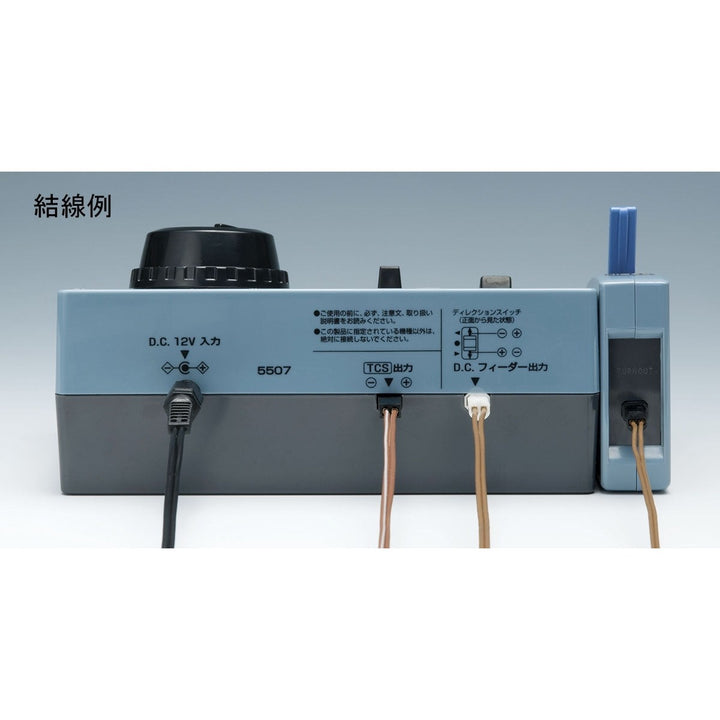

- Equipped with an output terminal for TCS and a side connector for points
- Forward/forward switching using a direction switch
- Each output uses a Next Neo connector method
- Built-in protection circuit
- Includes main switch and pilot lamp
- Power supply is a separate adapter type
Main Specifications
- Output: DC 1A (0 to 12V for vehicle running/12V TCS/12V electric point N drive)
- DC feeder N output: 1 system
- TCS connector terminal: Yes
- Side connector: Yes (point control box) (Connector for N)
- Always on function: None
- Power supply: Adapter method
- Size (main unit): 153 x 89 x 71mm

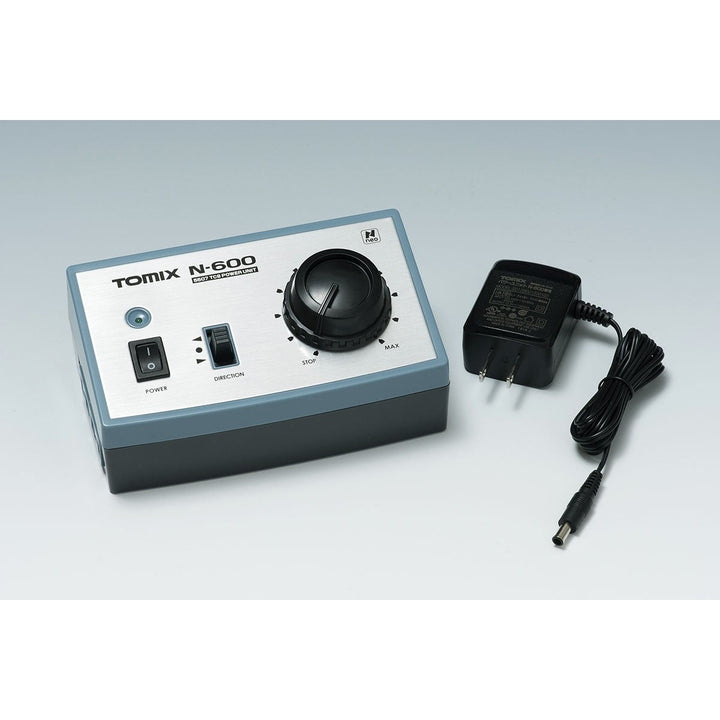

- TCS power unit N-600
- AC adapter
- Dimensions:Â 153 x 89 x 71 mm
N Power Unit N-600
$89.99$99.99
