Controller with 1.0 amp Transformer

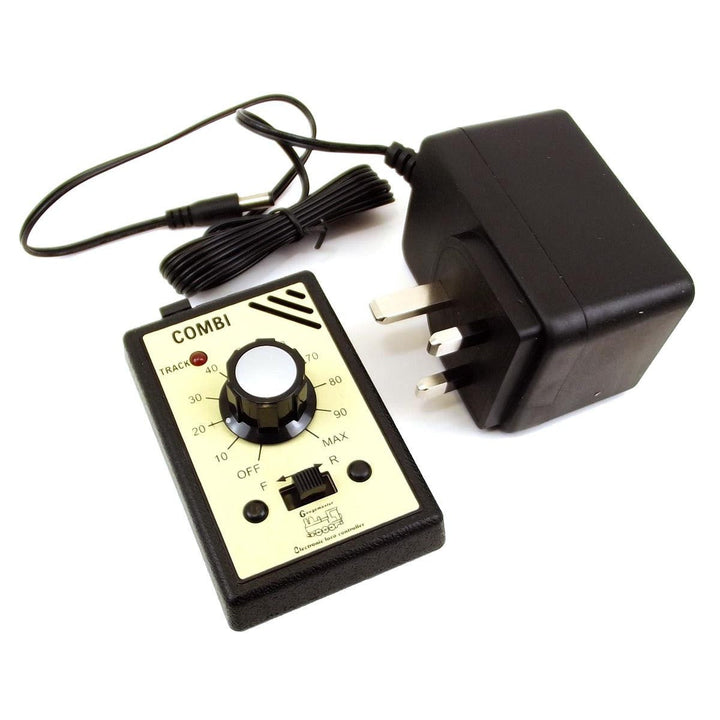

This uncomplicated controller comes complete with a separate dedicated transformer which plugs directly into the wall with a 1.8m lead to plug into the back of the controller.

Made from high-impact ABS, this entry-level controller offers the same running characteristics as our traditional units. The best controller for starting your model railway or to control the lighting on your existing layout.

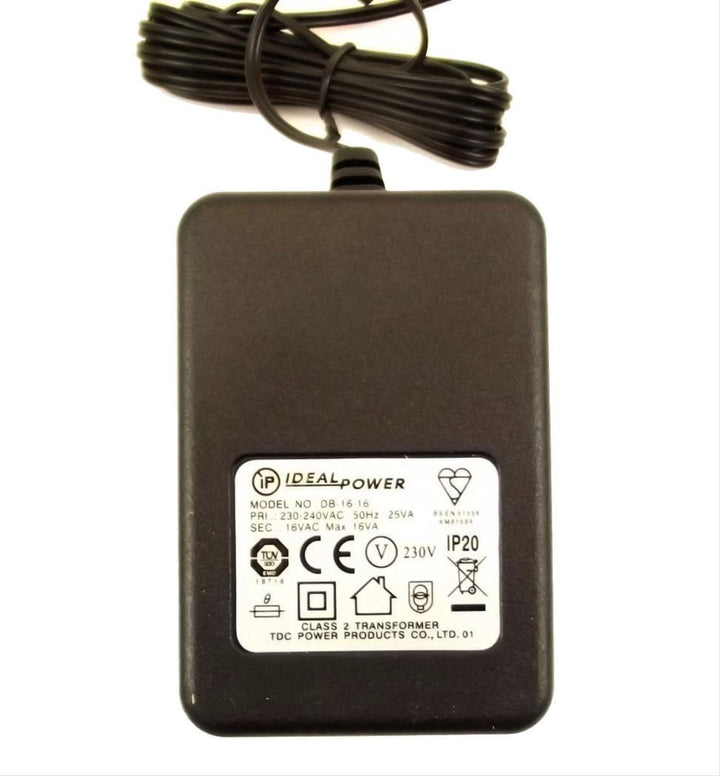

Transformer Details

• Input: 230v AC (Mains)
• Output Voltage: 16v AC
• Current: 1.1 Amps
• Length: 65mm
• Width: 80mm
• Height: 83mm

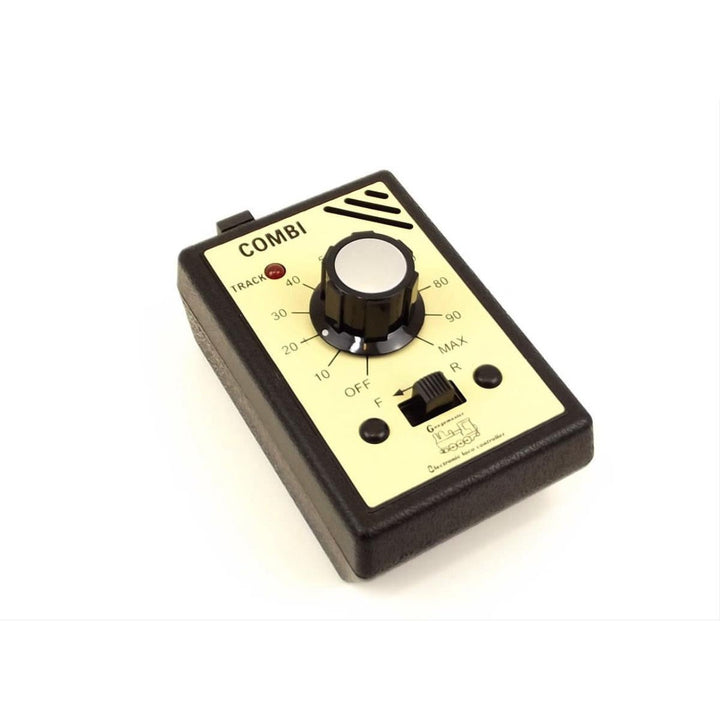

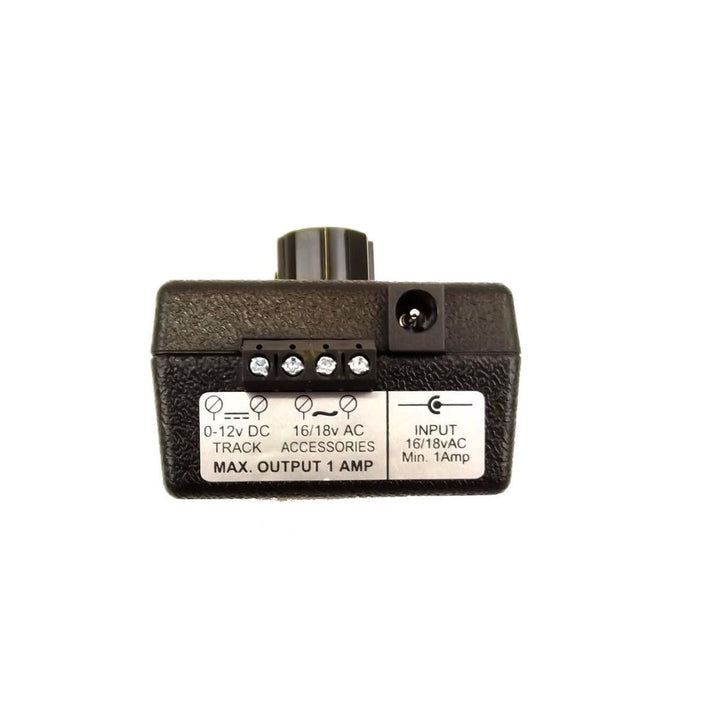

Controller Details

• Input: 16v AC (from transformer)
• Output Voltage: 1 x 12v DC, 1 x 16v AC
• Current: 1.1 Amps
• Length: 90mm
• Widdth: 58mm
• Height: 35mm
